多角度切割鋸Pipe Saw

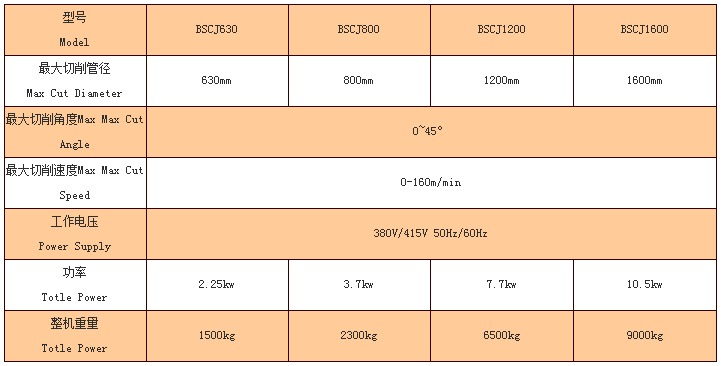

BSCJ 630/800/1200/1600

用途及特點：

1.適用于在車間制作彎頭、三通、四通等管件，按照設定的角度和尺寸切割管材下料，將材料浪費降到最低

2.切割角度范圍0~45°，精確角度定位

3.一體化結構設計，鋸身、旋轉臺設計極其穩定

4.鋸條斷裂自動檢測并自動停機，確保操作人員安全

5.穩定性好，噪聲低，操作方便

Descripption:

Hydraulically operated pipe saw specifically produced

for the preparation of pipe segments in PE,PP and other thermoplastic materials,used for the production

of bends,tees and other fabrications.Cutting angle is up to 45 degrees.Cut angle is locked

on scale table.Saw box equipped with limit switch and it will stop automatically when saw blade reaches the

worktable lamit.Easy opened saw box side cover for

cover for convenience of checking.
